Univention Bugzilla – Bug 30004
Representation of system notifications
Last modified: 2013-11-19 06:43:45 CET

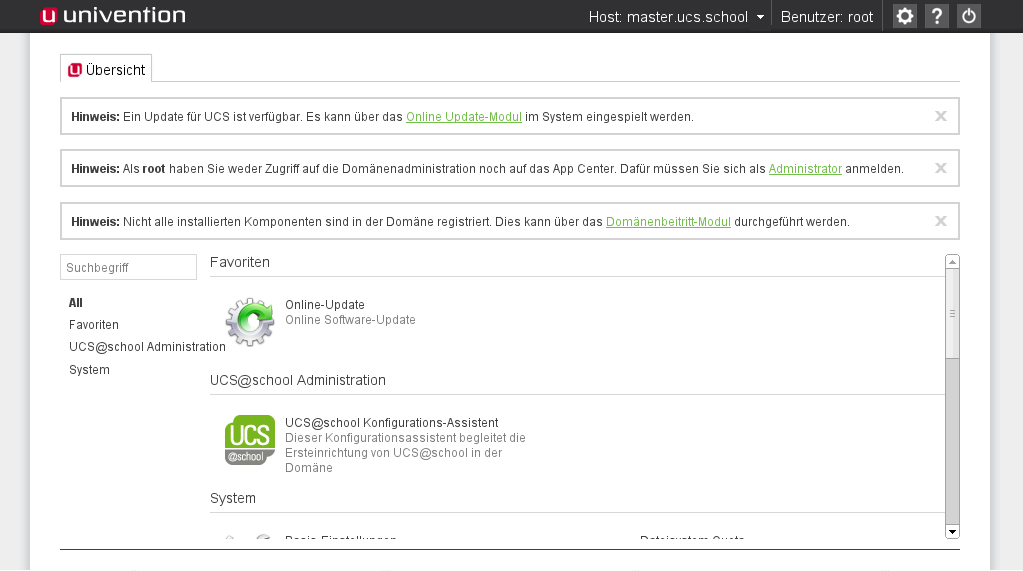

Created attachment 4975 [details] UMC with notifications sketch Currently, important system notifications are displayed on the UMC overview page. Attached is a sketch of how system notifications could be displayed. The number in the UMC menu bar indicates how many notifications are unread (displayed in red if >0). By clicking on the number, the sketched popup window would be displayed. Already seen notifications would be marked with a darker background.
To give new users a hint what this number will represent, something like a mail icon or a text like "system messages" should be added.
Cool. One would have to support notifications without links for those like "Your browser is outdated" (or link to http://www.mozilla.org/de/firefox/fx/ ...) and it should interoperate with dialog.notify(), as the currently used toaster is buggy (notifying during the animation breaks it). dialog.notify("Your session expired") would have to go into the LoginDialog, though. Notifications should be removable from the list (at least those that have been seen).
*** Bug 24532 has been marked as a duplicate of this bug. ***
*** Bug 24491 has been marked as a duplicate of this bug. ***
*** Bug 10326 has been marked as a duplicate of this bug. ***
*** Bug 30713 has been marked as a duplicate of this bug. ***
Created attachment 5276 [details] Sketch of a different idea for system notifications with i-Button in the toolbar.

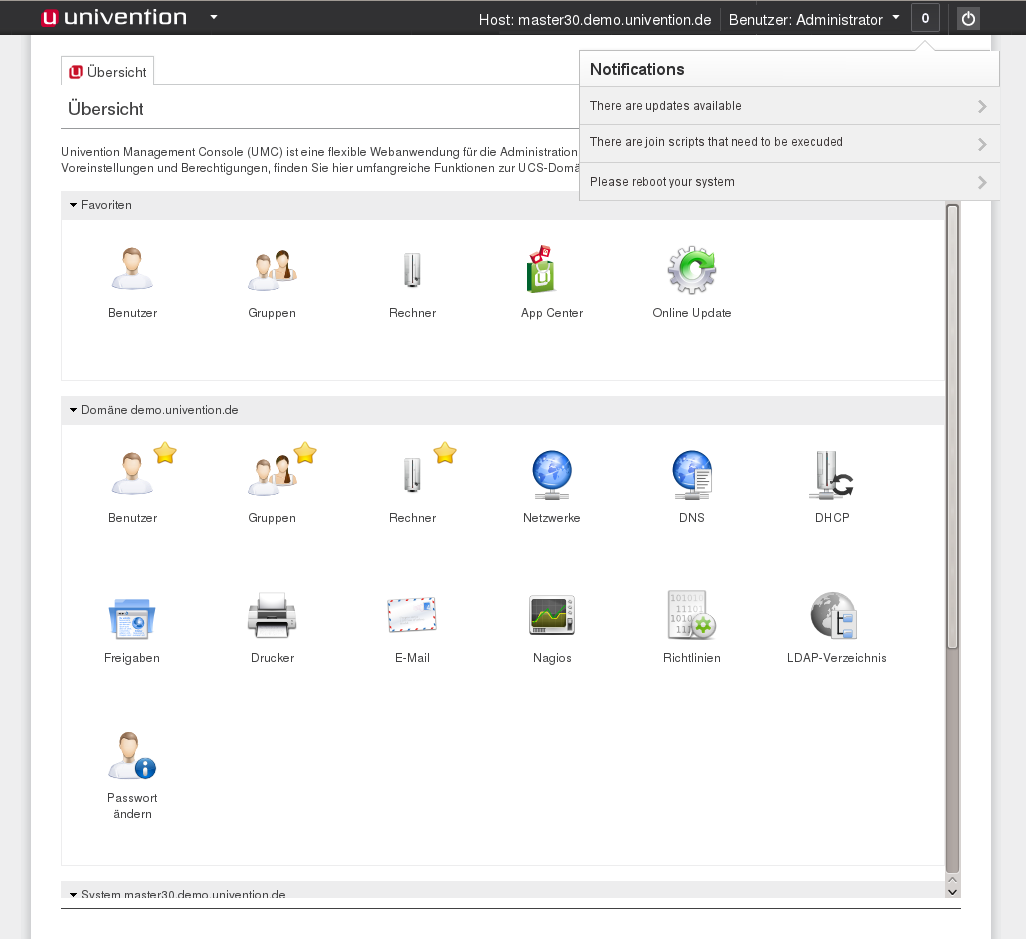

Created attachment 5334 [details] View with three notifications This is the current view with only 3 notifications...
The first bit has been implemented: univention-management-console-frontend (3.0.118-1) unstable; urgency=low . * Bug #30004: added new system notifications, refactored some CSS code into correct files, moved LoginDialog into umc/dialog/, added login messages into login Form
univention-management-console-frontend (3.0.119-1) unstable; urgency=low . * Bug #30004: adjusted mouseover/click/touch behaviour of the notifications, added missing translations
When a notification is added at 16:06 the panel says "16:6"
A timeout is added when the "i" is clicked and the notifications disappear unless you do not hover over the area. I would order them the other way around: Latest notification at the bottom
Two new generic methods have been added to faciliate the integration of the new notification framework in other modules: mymodule.addNotification() mymodule.addWarning() Both methods re-use the module's tab title as component information in the notification message (→ r45526). univention-management-console-frontend (3.0.120-1) unstable; urgency=low . * Bug #30004: provide addNotification() and addWarning() as Module functions Adjustment for other modules... > services/univention-ad-connector/umc/js/adconnector.js → r45525 univention-ad-connector (8.0.9-1) unstable; urgency=low . * Bug #30004: adjusted handling of notifications → r45541 univention-ad-connector (8.0.10-1) unstable; urgency=low . * Bug #30004: fixed scope handling for notifications > management/univention-management-console-module-top/umc/js/top.js → 45527 univention-management-console-module-top (3.0.2-1) unstable; urgency=low . * Bug #30004: adjustements for new notifications > management/univention-management-console-frontend/umc/tools.js > management/univention-management-console-frontend/umc/app.js > management/univention-management-console-frontend/umc/widgets/_ModuleMixin.js nothing to do > management/univention-management-console-frontend/umc/widgets/Page.js adjusted deprecated Page.addNote() method. > management/univention-management-console-frontend/umc/widgets/Form.js adjusted call to dialog.notify() (→ r45530) univention-management-console-frontend (3.0.121-1) unstable; urgency=low . * Bug #30004: adjustements for new notifications > management/univention-join/umc/js/join.js → r45531 univention-join (6.0.14-1) unstable; urgency=low . * Bug #30004: adjustements for new notifications > base/univention-system-setup/umc/js/setup/SoftwarePage.js > base/univention-system-setup/umc/js/setup/CertificatePage.js > base/univention-system-setup/umc/js/setup/NetworkPage.js > base/univention-system-setup/umc/js/setup/BasisPage.js > base/univention-system-setup/umc/js/setup.js → r45538 univention-system-setup (7.0.55-1) unstable; urgency=low . * Bug #30004: adjustements for new notifications, make sure changes on interfaces are only shown once → and also r45542 univention-management-console-frontend (3.0.122-1) unstable; urgency=low . * Bug #30004: clean up old notification handling in Page, minor CSS fix, add property 'standingBy' to StandbyMixin (for Basic settings module) @QA: Please also check the appliance mode! > base/univention-updater/umc/js/updater.js → r45539 univention-updater (9.0.26-1) unstable; urgency=low . * Bug #30004: adjustements for new notifications > virtualization/univention-virtual-machine-manager-daemon/umc/js/uvmm/DomainPage.js → r45540 univention-virtual-machine-manager-daemon (3.0.14-1) unstable; urgency=low . * Bug #30004: adjustements for new notifications
(In reply to Dirk Wiesenthal from comment #11) > When a notification is added at 16:06 the panel says "16:6" I checked the notifications on IE and tablets, removed some debug comments, and fixed the time representation in the notifications. I needed to fix Bug 32972 to make iPad work. univention-management-console-frontend (3.0.123-1) unstable; urgency=low . * Bug #30004: removed comments, changed console.log() to console.warn(), fixed time representation in notifications (In reply to Dirk Wiesenthal from comment #12) > A timeout is added when the "i" is clicked and the notifications disappear > unless you do not hover over the area. > > I would order them the other way around: Latest notification at the bottom I would rather leave it like that, it felt strange the other way round.
When startup dialogue is shown, overview notifications are not clickable (e.g. "New updates"). I guess this is correct, they should be shown. But they are not marked as unread.
(In reply to Dirk Wiesenthal from comment #15) > When startup dialogue is shown, overview notifications are not clickable > (e.g. "New updates"). I guess this is correct, they should be shown. This is meant to be like that due to the overlay of the dialogue. > But they are not marked as unread. Oh yes. This would happen when the UCRV update/available=yes is set. Initially the message is not indicated with the red bubble. I also observed that once the notifications are opened by clicking on "i", they hide themselves automatically. The menu icon for notifications ("i") needed also to be converted from a font to a path. The corresponding font did not exist on the build server. univention-management-console-frontend (3.0.125-1) unstable; urgency=low . * Bug #30004: make sure that initial notifications are shown with the red bubble, remove automatic closing when clicking on "i" button, convert menu icon for notifications to path
When clicking on the "i" when there are no (and never have been any) notifications for the very first time, a red empty bubble is shown. Normally it contains the number of new notifications but here it is just empty.
Some strange error: this._createNotificationMaster(); is undefined in dialog.notify reproducable when directly jumping into "&module=udm&flavor=dhcp/dhcp" In that case "this.declaredClass" is "umc.widgets.Page". Perhaps this has something to do with a missing or wrong lang.hitch(this, …) I don't understand why the mixin is required "dialog = lang.mixin({}, {…})" in umc.dialog. (The mesage when this occurs is "Sie haben mehr Managed-Client-Konten, als Ihre Lizenz erlaubt. Während dieser Sitzung ist das Hinzufügen und Bearbeiten von Objekten nicht möglich.")
(In reply to Florian Best from comment #18) > Some strange error: > this._createNotificationMaster(); is undefined in dialog.notify > > reproducable when directly jumping into "&module=udm&flavor=dhcp/dhcp" > In that case "this.declaredClass" is "umc.widgets.Page". > Perhaps this has something to do with a missing or wrong lang.hitch(this, …) > > I don't understand why the mixin is required "dialog = lang.mixin({}, {…})" > in umc.dialog. > > (The mesage when this occurs is "Sie haben mehr Managed-Client-Konten, als > Ihre Lizenz erlaubt. Während dieser Sitzung ist das Hinzufügen und > Bearbeiten von Objekten nicht möglich.") Ah... missing lang.hitch(). Thanks for the hint. Fixed. univention-management-console-frontend (3.0.130-1) unstable; urgency=low . * Bug #30004: fixed scoping problem with addNotification in umc/widgets/Page * Bug #30004: make sure that "your session has expired" is not shown when initially loading UMC * Bug #32218: changed order of buttons in logout dialogue * Bug #32218: remove margin-rigth from "add" button in MultiInput
(In reply to Dirk Wiesenthal from comment #17) > When clicking on the "i" when there are no (and never have been any) > notifications for the very first time, a red empty bubble is shown. Normally > it contains the number of new notifications but here it is just empty. Correct. I fixed the handling of the red notification bubble. univention-management-console-frontend (3.0.131-1) unstable; urgency=low . * Bug #30004: fixed initial handling of the red notification bubble
base/univention-updater/umc/js/updater.js 423: dialog.notify(_('The update process was successful.'));
virtualization/univention-virtual-machine-manager-daemon/umc/js/uvmm/DomainPage.js 83: addNotification: dialog.notify, services/univention-ad-connector/umc/js/adconnector.js 58: addNotification: dialog.notify, 246: addNotification: dialog.notify, → lang.hitch(dialog, 'notify') ?
When opening a domain in UVMM a notification is displayed and immediately get hidden. This does not look very well.
a running domain* in updater.js there is also an dialog.alert which would be better fit as notification: 175 » » » » » » dialog.alert(_('In order to complete the recently executed action, it is required to reboot the system.'))
If clicking on the link in "An update is available, please open the Software update module", the notification disappears but it is marked unread.
(In reply to Dirk Wiesenthal from comment #25) > If clicking on the link in "An update is available, please open the Software > update module", the notification disappears but it is marked unread. Oh, clarification: If clicking on that link in the first seconds of UMC startup.
Created attachment 5545 [details] screenshot login failure
(In reply to Florian Best from comment #21) > base/univention-updater/umc/js/updater.js > 423: dialog.notify(_('The update > process was successful.')); Hm… could not find any dialog.notify() in the updater package. (In reply to Florian Best from comment #22) > virtualization/univention-virtual-machine-manager-daemon/umc/js/uvmm/ > DomainPage.js > 83: addNotification: dialog.notify, > > services/univention-ad-connector/umc/js/adconnector.js > 58: addNotification: dialog.notify, > 246: addNotification: dialog.notify, > > → lang.hitch(dialog, 'notify') ? Both cases are fine as addNotification is overwritten during instantiation, e.g., the first one: > this._domainPage = new DomainPage({ > ... > addNotification: lang.hitch(this, 'addNotification'), > ... > }); (In reply to Florian Best from comment #23) > When opening a domain in UVMM a notification is displayed and immediately > get hidden. This does not look very well. Fixed: Good point, I changed it such that notification is only closed when it has been visible for at least 0.5 sec. This works fine for the "updates available" link (→ notifications get closed) and avoids the problems you described (also jumping immediately into a module via query string). (In reply to Florian Best from comment #24) > a running domain* > > in updater.js there is also an dialog.alert which would be better fit as > notification: > 175 » » » » » » dialog.alert(_('In order to complete the > recently executed action, it is required to reboot the system.')) Not scope of this bug, should go into a usability enhancement for UVMM. (In reply to Dirk Wiesenthal from comment #26) > (In reply to Dirk Wiesenthal from comment #25) > > If clicking on the link in "An update is available, please open the Software > > update module", the notification disappears but it is marked unread. > > Oh, clarification: If clicking on that link in the first seconds of UMC > startup. Fixed: Clicking on a link in the notifications will mark them as read. (In reply to Florian Best from comment #27) > Created attachment 5545 [details] > screenshot login failure Fixed: The notification during polling has been replaced with a status message on the login dialogue. univention-management-console-frontend (3.0.142-1) unstable; urgency=low . * Bug #30004: added delay to auto closing of notifications, mark notifications as read when clicking on a link, adjust 411 error notification during long polling
OK
UCS 3.2 has been released: http://docs.univention.de/release-notes-3.2-en.html http://docs.univention.de/release-notes-3.2-de.html If this error occurs again, please use "Clone This Bug".
