Univention Bugzilla – Bug 55048
Adding driver through GUI causes RPC failure, crash on samba side
Last modified: 2022-08-31 12:19:36 CEST

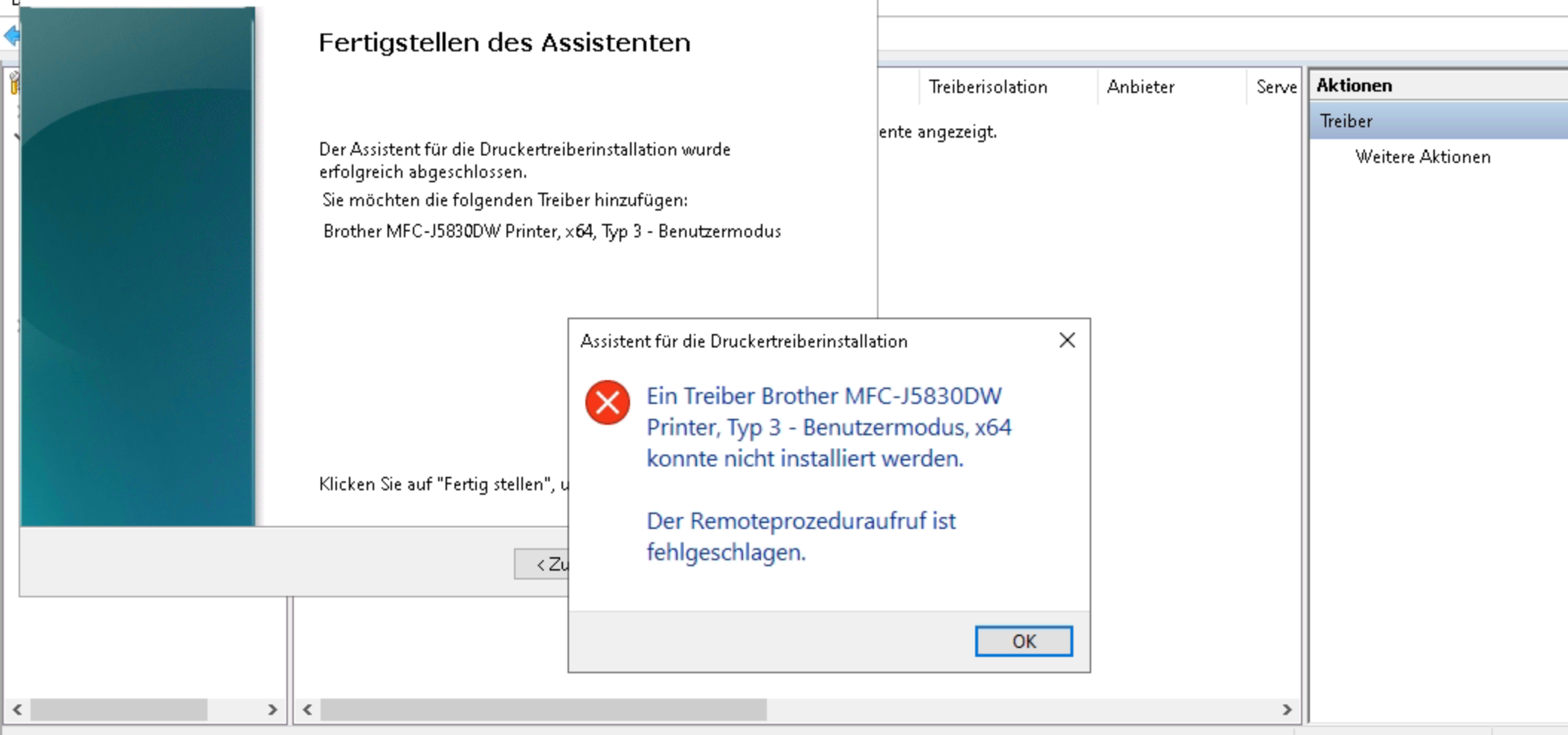

Created attachment 10968 [details] Screenshot Adding a printer driver with the printer management GUI causes the following error message: "The driver XXX could not be installed. The remote procedure call failed." (see screenshot) I looked a the univention side to identify the cause of the problem and found the following problem: ==> /var/log/samba/log.rpcd_spoolss <== [2022/08/01 09:51:15, 0] ../../source3/rpc_server/rpc_worker.c:1107(rpc_worker_main) rpcd_spoolss version 4.16.2-Univention started. Copyright Andrew Tridgell and the Samba Team 1992-2022 [2022/08/01 09:51:15, 0] ../../lib/util/fault.c:172(smb_panic_log) =============================================================== [2022/08/01 09:51:15, 0] ../../lib/util/fault.c:176(smb_panic_log) INTERNAL ERROR: Signal 11: Speicherzugriffsfehler in pid 14869 (4.16.2-Univention) [2022/08/01 09:51:15, 0] ../../lib/util/fault.c:181(smb_panic_log) If you are running a recent Samba version, and if you think this problem is not yet fixed in the latest versions, please consider reporting this bug, see https://wiki.samba.org/index.php/Bug_Reporting [2022/08/01 09:51:15, 0] ../../lib/util/fault.c:182(smb_panic_log) =============================================================== [2022/08/01 09:51:15, 0] ../../lib/util/fault.c:184(smb_panic_log) PANIC (pid 14869): Signal 11: Speicherzugriffsfehler in 4.16.2-Univention [2022/08/01 09:51:15, 0] ../../lib/util/fault.c:288(log_stack_trace) BACKTRACE: 24 stack frames: #0 /usr/lib/x86_64-linux-gnu/libsamba-util.so.0(log_stack_trace+0x30) [0x7f7db35970d0] #1 /usr/lib/x86_64-linux-gnu/libsamba-util.so.0(smb_panic+0x9) [0x7f7db3597329] #2 /usr/lib/x86_64-linux-gnu/libsamba-util.so.0(+0xf3c1) [0x7f7db35973c1] #3 /lib/x86_64-linux-gnu/libpthread.so.0(+0x12730) [0x7f7db28ac730] #4 /usr/lib/x86_64-linux-gnu/samba/libsmbd-base-samba4.so.0(mangle_is_mangled+0xa) [0x7f7db31cdf2a] #5 /usr/lib/x86_64-linux-gnu/samba/libsmbd-base-samba4.so.0(unix_convert+0x15d6) [0x7f7db31686a6] #6 /usr/lib/x86_64-linux-gnu/samba/rpcd_spoolss(+0x1bf62) [0x559ffc420f62] #7 /usr/lib/x86_64-linux-gnu/samba/rpcd_spoolss(move_driver_to_download_area+0x21c) [0x559ffc423c9c] #8 /usr/lib/x86_64-linux-gnu/samba/rpcd_spoolss(_spoolss_AddPrinterDriverEx+0xc2) [0x559ffc44ba12] #9 /usr/lib/x86_64-linux-gnu/samba/rpcd_spoolss(+0x4b562) [0x559ffc450562] #10 /usr/lib/x86_64-linux-gnu/libdcerpc-server-core.so.0(dcesrv_loop_next_packet+0xe00) [0x7f7db3620530] #11 /usr/lib/x86_64-linux-gnu/libdcerpc-server-core.so.0(+0x91e0) [0x7f7db36211e0] #12 /usr/lib/x86_64-linux-gnu/libdcerpc-binding.so.0(+0xcc7f) [0x7f7db2c93c7f] #13 /usr/lib/x86_64-linux-gnu/samba/libsamba-sockets-samba4.so.0(+0x71a2) [0x7f7db36041a2] #14 /usr/lib/x86_64-linux-gnu/samba/libsamba-sockets-samba4.so.0(+0x5f6b) [0x7f7db3602f6b] #15 /usr/lib/x86_64-linux-gnu/libtevent.so.0(tevent_common_invoke_immediate_handler+0x17a) [0x7f7db2889f8a] #16 /usr/lib/x86_64-linux-gnu/libtevent.so.0(tevent_common_loop_immediate+0x23) [0x7f7db2889fb3] #17 /usr/lib/x86_64-linux-gnu/libtevent.so.0(+0xde3b) [0x7f7db288fe3b] #18 /usr/lib/x86_64-linux-gnu/libtevent.so.0(+0xc0b7) [0x7f7db288e0b7] #19 /usr/lib/x86_64-linux-gnu/libtevent.so.0(_tevent_loop_once+0x91) [0x7f7db2888e51] #20 /usr/lib/x86_64-linux-gnu/samba/libRPC-WORKER-samba4.so.0(rpc_worker_main+0x90a) [0x7f7db357b46a] #21 /usr/lib/x86_64-linux-gnu/samba/rpcd_spoolss(main+0x2c) [0x559ffc417e2c] #22 /lib/x86_64-linux-gnu/libc.so.6(__libc_start_main+0xeb) [0x7f7db262009b] #23 /usr/lib/x86_64-linux-gnu/samba/rpcd_spoolss(_start+0x2a) [0x559ffc417e6a] [2022/08/01 09:51:15, 0] ../../source3/lib/dumpcore.c:315(dump_core) dumping core in /var/log/samba/cores/rpcd_spoolss The currently installed Univention version is: 5.0-2 errata352.
Probably with this driver: https://support.brother.com/g/b/downloadlist.aspx?c=us_ot&lang=en&prod=mfcj5830dw_us&os=10013
The driver I used was: https://support.brother.com/g/b/downloadlist.aspx?c=us_ot&lang=en&prod=mfcj6530dw_us_eu_as&os=10013 But I tried to upload another (HP) driver too and got the same RPC failure.
Another customer is reporting this issue. He has discovered that this also happens when using rpcclient on the UCS systems directly.
I can actually reproduce this exact Bug with *any* printer driver on *any* newly installed UCS 5 school DC. But on servers that were upgraded to UCS 5, only some printer drivers fail to upload, and even these vary between systems. Needless to say, this needs to be fixed quickly, since i cannot provide printer drivers for clients on newly installed school DCs.
The struct mangle_fns is not initialized in rpcd_spoolss. This issue has already been reported to Samba and fixed in 4.16.3 https://bugzilla.samba.org/show_bug.cgi?id=15118 We applied the patch and built samba in the customer scope for now. Successful build Package: samba Version: 2:4.16.2-1A~5.0.0.202208261037 Branch: ucs_5.0-0 Scope: sfb User: jbremer
OK - driver upload via printmanagement.msc OK - driver upload via rpcclient adddriver customer will also test the package
Customer Feedback is positive. Hint: samba-restart is needed after patch install.
https://git.knut.univention.de/univention/ucs/-/merge_requests/494 added 39_upload_printer_driver for a short "rpcclient adddriver" test @julia, could you have a look (package ucs-test-samba-common from "deb [trusted=yes] http://omar.knut.univention.de/build2/git/fbotner-55048-rpcclient-test git main")
(In reply to Felix Botner from comment #10) > https://git.knut.univention.de/univention/ucs/-/merge_requests/494 > added 39_upload_printer_driver for a short "rpcclient adddriver" test > > @julia, could you have a look (package ucs-test-samba-common from "deb > [trusted=yes] > http://omar.knut.univention.de/build2/git/fbotner-55048-rpcclient-test git > main") merged Successful build Package: ucs-test Version: 10.0.7-17A~5.0.0.202208290927 Branch: ucs_5.0-0 Scope: errata5.0-2
Patch applied and built for errata5.0-2 Successful build Package: samba Version: 2:4.16.2-1A~5.0.0.202208290938 Branch: ucs_5.0-0 Scope: errata5.0-2 User: jbremer r19700 65d8fe29bf Bug #55048: yaml
OK - manual driver upload via windows printmanagement.msc OK - 53_samba-common/39_upload_printer_driver OK - yaml TODO wait for jenkins
OK - Jenkins
<https://errata.software-univention.de/#/?erratum=5.0x398>
