consider replacing the whole xorg, firefox, openbox conglomerate with plymouth for the welcome screen
Last modified: 2016-01-27 16:17:43 CET
With the new welcome screen, a xserver, openbox and firefox is installed and started on every system. We should check if we could use plymouth for the welcome screen (there are tetris games out there for plymouth!).
Plymouth provides an own scripting language. Alternatively C code could be used. A full theming tutorial is here: http://brej.org/blog/?p=158 http://brej.org/blog/?p=174 http://brej.org/blog/?p=197 http://brej.org/blog/?p=238 The mentioned tetris game with code is here: http://brej.org/blog/?p=409 http://www.freedesktop.org/wiki/Software/Plymouth/
*** Bug 39235 has been marked as a duplicate of this bug. ***

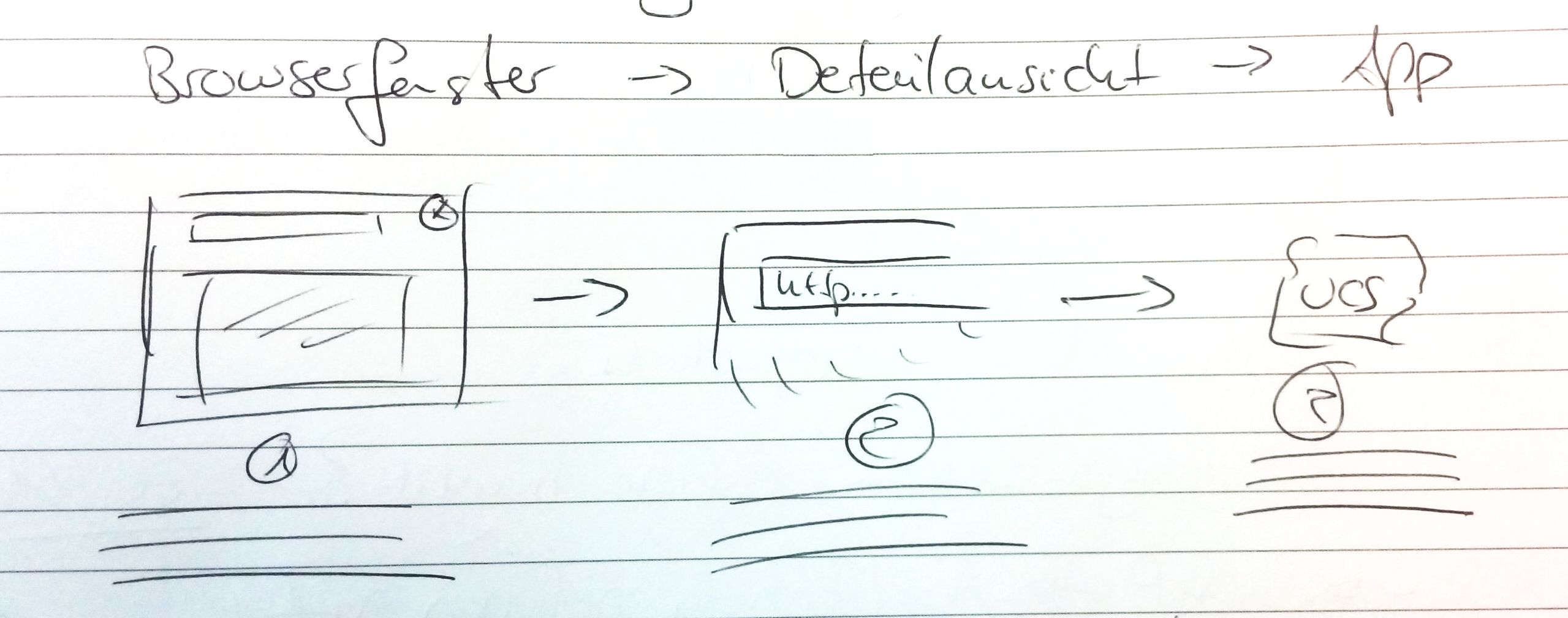

See Bug 39235, comment #2, the current design needs to be adapted and should be done within the scope of this bug: > Created attachment 7219 [details] > Sketch > > A few ideas for an improvement (cf. attached sketch): > * Use simple, straight arrows instead of curved, dynamic ones. This will > better > suggest that the graphic is a schematic procedure. > * For an Univention App appliance: Replace the UMC icon with the app icon. > * The current graphics are too realistic, it would help to understand the > schematic procedure with stylized graphics: > 1. Use a stylized browser window, e.g.: > http://www.freepik.com/free-photos-vectors/browser-window > 2. Use a zoomed in version of the browser window, only show the upper left > corner along with the address bar and cut off (or fade out) the rest. > 3. Use the UMC/App icon for the last step > * Each step could be accompanied by large numbers (1, 2, 3) as well as some > explanatory text below.

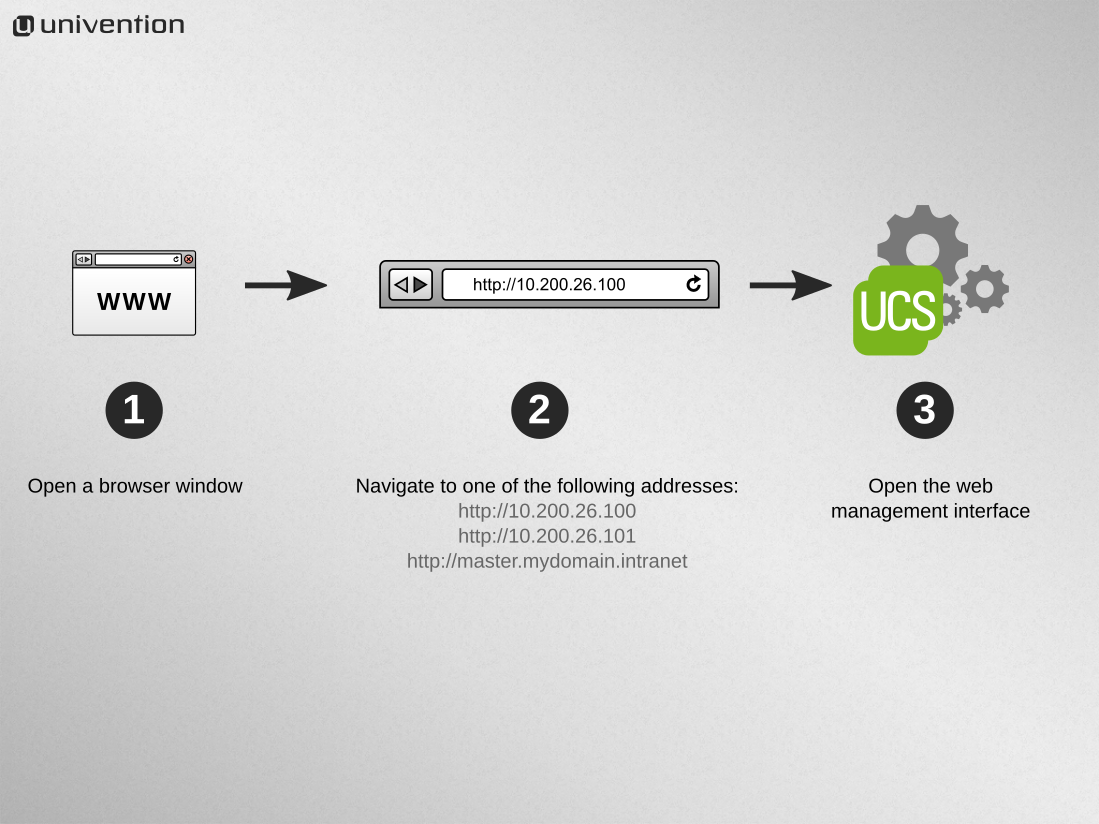

Created attachment 7337 [details] Mockup I could imagine myself something like the attached mockup... any opinion on this suggestion?

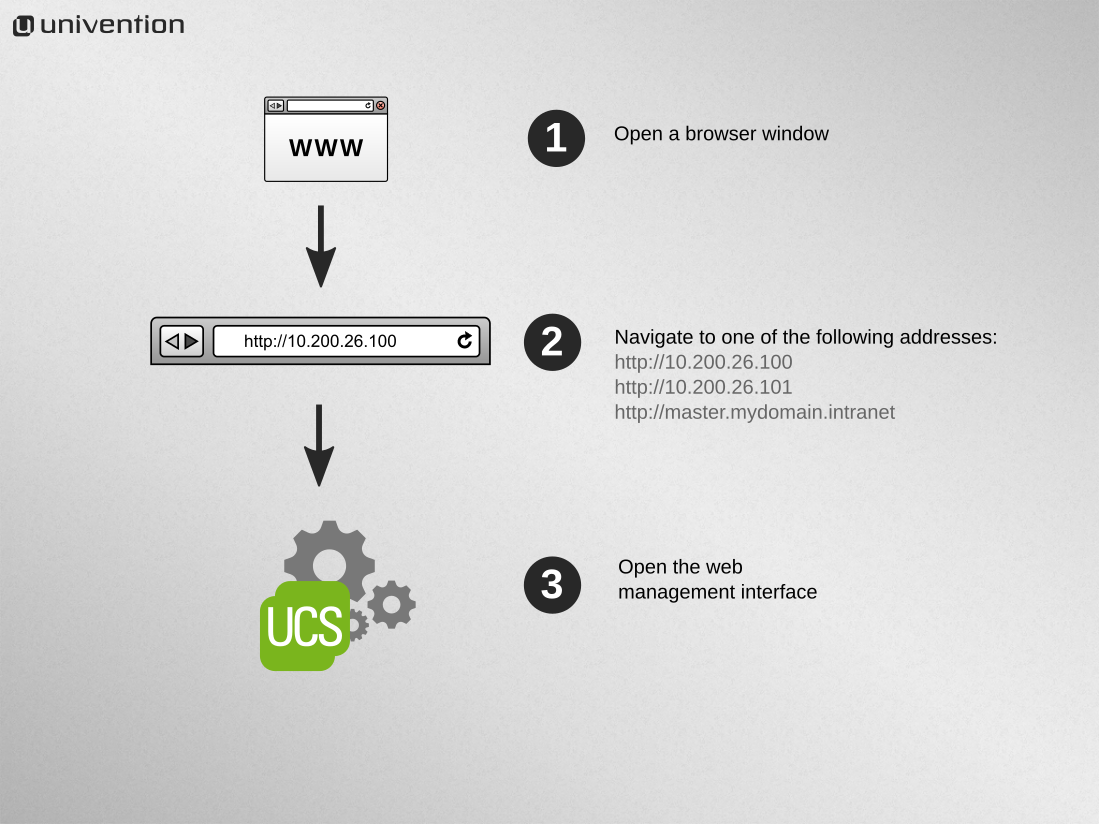

Created attachment 7338 [details] Mockup alternative Another alternative...
I like these ideas. The final screen should also include information on how the user can access a console
Created attachment 7339 [details] Final mockup Attached is the final mockup.
Created attachment 7340 [details] Final mockup with guides ... and the corresponding guides for the layout (to be tested for large displays). Font size is 12px in general and 16px for the headline. Text color is #282828 in general and #787878 for the links.
Created attachment 7341 [details] Images Attached you find all ready cut images.
univention-bootsplash: * added univention welcome screen mode to ucs.script * added binary package univention-welcome-screen with univention-welcome-screen script and init script (replaces univention "old" univention-welcome-screen package, removed that in svn) plymouth: * added patch 050-init-welcome-screen.patch to not stop plymouth in init script (start) if welcome screen is enabled (for a smooth transition from bootsplash to welcome screen) univention-bootsplash.yaml plymouth.yaml QA: * welcome-screen layout * welcome screen can be disabled * welcome screen after boot/system setup boot
Created attachment 7354 [details] Screenshot after pressing ESC during boot When pressing ESC during the bootsplash, the welcome screen is not shown.

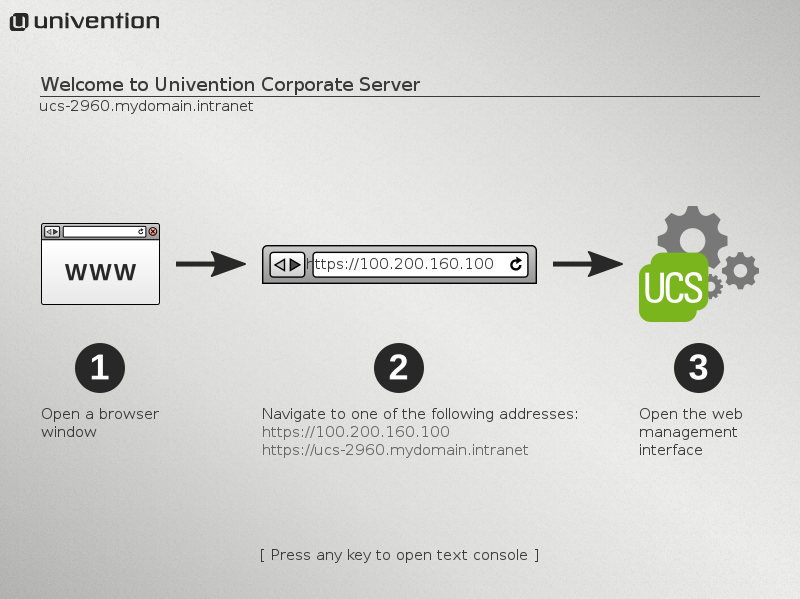

Created attachment 7355 [details] Screenshot with long IP address The address does not fix on a system with a very long IP address. The easiest thing would probably be to add an offset to the right from the center. Can you left align the text to the beginning of the address field?

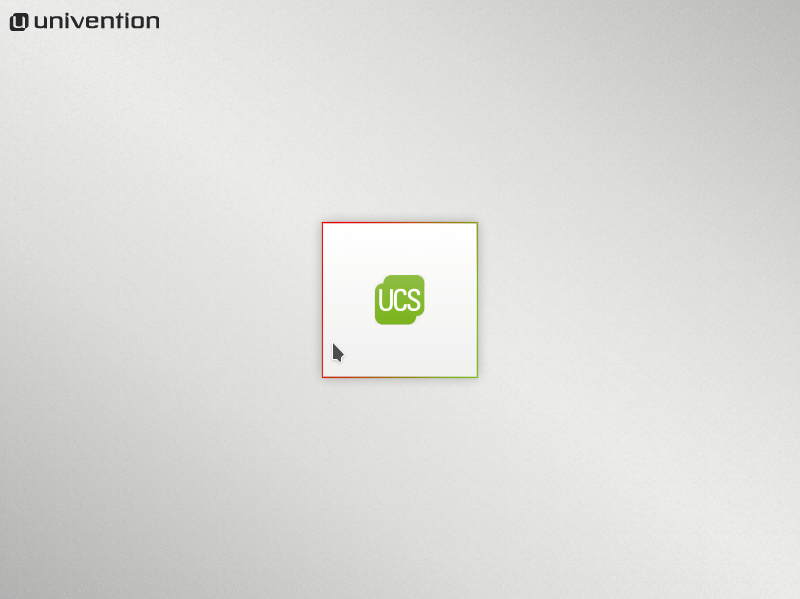

Created attachment 7356 [details] Screenshot bootsplash With 800x600 resolution, the bootsplash UCS logo box is too small. Could you adjust the size? With UMC, the box as a fixed size regardless the display/window size. I found the size of the box for 1280x800 to be fine and would suggest to use this size as fix size for all resolutions.

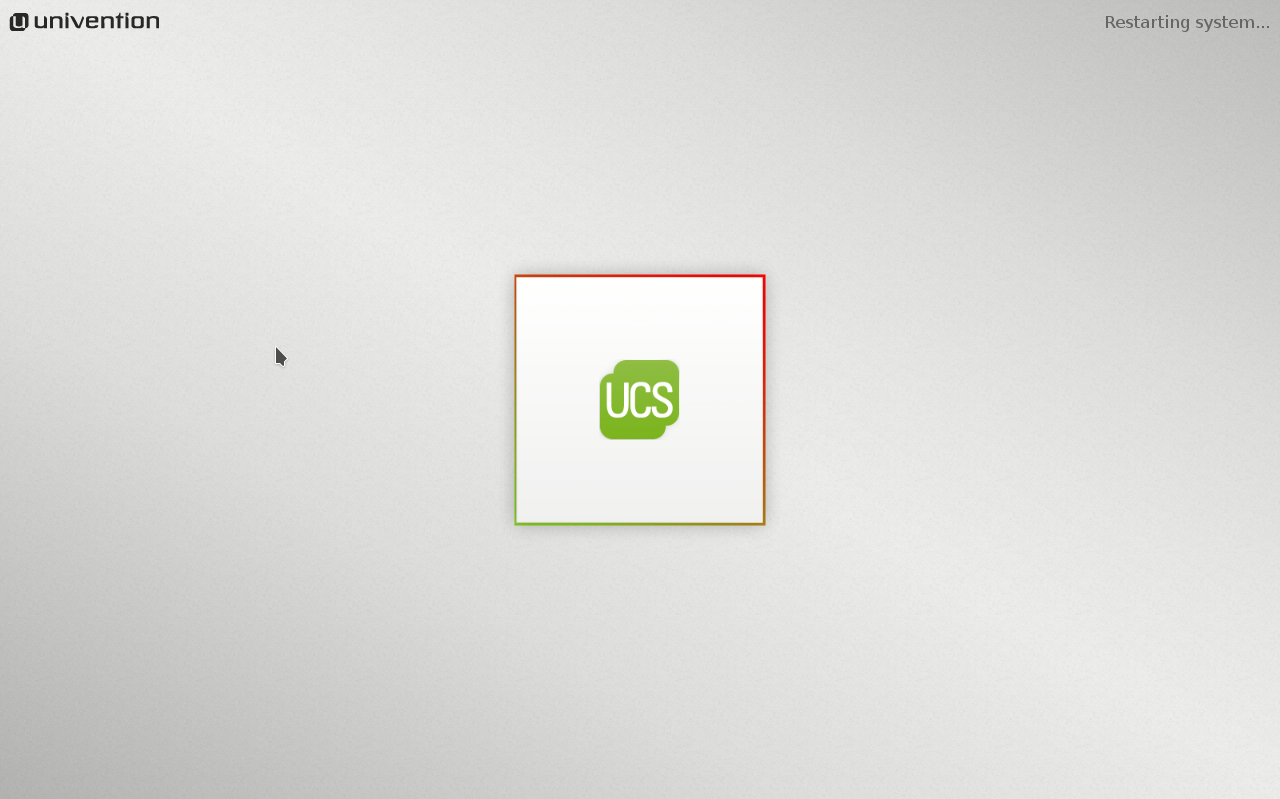

Created attachment 7357 [details] Screenshot bootsplash 1280x800

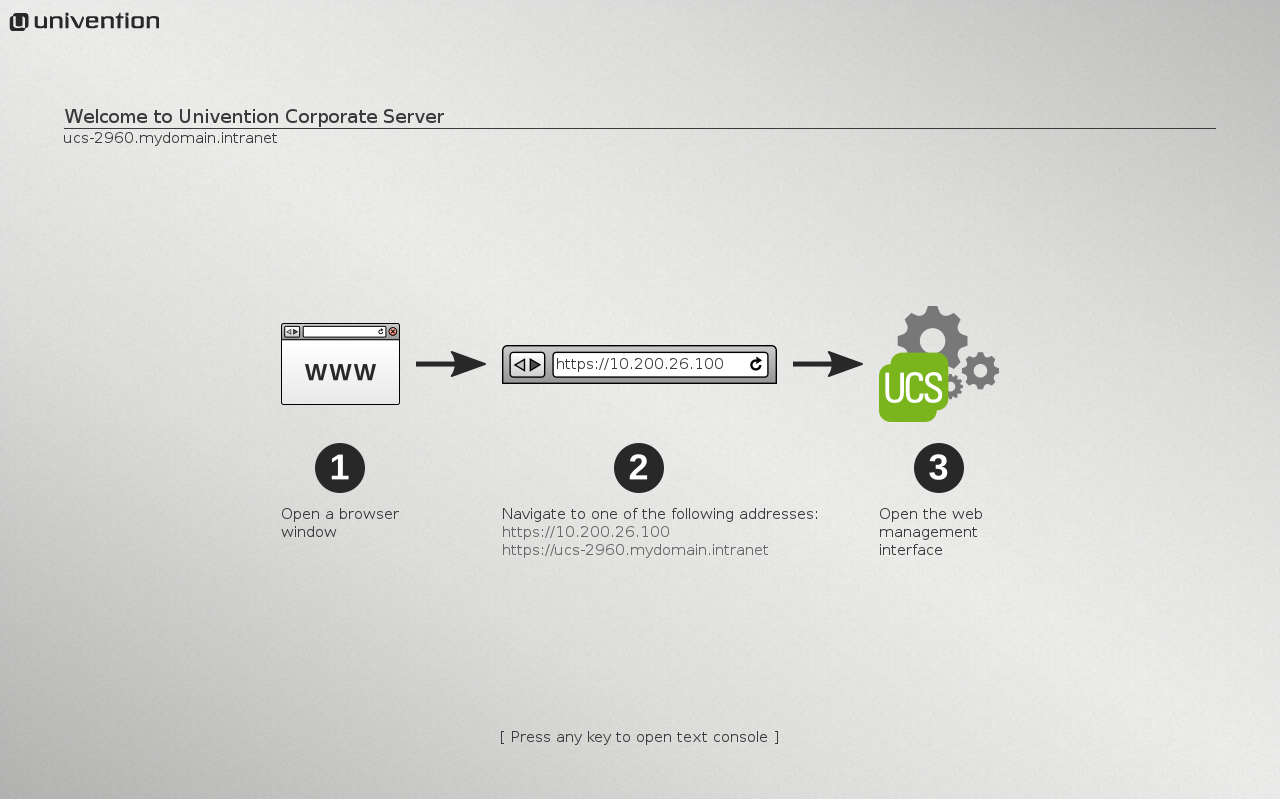

Created attachment 7358 [details] Screenshot welcome screen 1280x800 ... just for the records the layout of the welcome screen for 1280x800.
Other points: * Currently, there is a time lag of 2-3 seconds (?) until the welcome screen disappears when pressing a key. Would it be possible to minimize this time lag? * I could not restart the welcome screen after it disappeared, is this correct? Otherwise... * Language seems to be fine (tested DE, FR, EN for locale/default). * Layout for 800x600 as well as larger resolutions is fine. TODO: * System setup boot
(In reply to Alexander Kläser from comment #11) > When pressing ESC during the bootsplash, the welcome screen is not shown. I think that is okay. If i actively want to see boot messages by pressing <ESC>, i should be able to do so
(In reply to Alexander Kläser from comment #16) > Other points: > * Currently, there is a time lag of 2-3 seconds (?) until the welcome screen > disappears when pressing a key. Would it be possible to minimize this time > lag? That was due to the restart and proper quit of plymouth to clear the terminal. Now it goes like this * plymouth init script does not stop plymouth if welcome screen is enabled * univention-welcome screen uses plymouth to display the welcome screen copies the framebuffer image to a file quits plymouth changes to vt 11 and copied the file to the framebuffer waits for keyboard interaction > Screenshot with long IP address fixed > bootsplash UCS logo box is too small fixed, the logo now has a fixed size of 250x250 for all resolutions > * I could not restart the welcome screen after it disappeared, is this > correct? use -> /etc/init.d/plymouth stop # (this starts plymouth) -> /etc/init.d/univention-welcome-screen start to restart the welcome screen (i don't want to start plymouth in the welcome screen)
(In reply to Felix Botner from comment #18) > (In reply to Alexander Kläser from comment #16) > > Other points: > > * Currently, there is a time lag of 2-3 seconds (?) until the welcome screen > > disappears when pressing a key. Would it be possible to minimize this time > > lag? > > That was due to the restart and proper quit of plymouth to clear the > terminal. Now it goes like this > * plymouth init script does not stop plymouth if welcome screen is enabled > * univention-welcome screen uses plymouth to display the welcome screen > copies the framebuffer image to a file > quits plymouth > changes to vt 11 and copied the file to the framebuffer > waits for keyboard interaction OK. > > Screenshot with long IP address > fixed OK. > > bootsplash UCS logo box is too small > fixed, the logo now has a fixed size of 250x250 for all resolutions I guess you did not take into account that the images contain a semi-transparent shadow and are thus larger than the visible box itself. I checked, 320x320 should be the size that I was thinking of. > > * I could not restart the welcome screen after it disappeared, is this > > correct? > use > -> /etc/init.d/plymouth stop # (this starts plymouth) > -> /etc/init.d/univention-welcome-screen start > to restart the welcome screen (i don't want to start plymouth in the welcome > screen) OK, as discussed, the script /etc/init.d/plymouth works inverse (plymouth is started when the service is stopped, i.e., during shutdown, and it is stopped, when the service is started, i.e., during bootup), and the welcome screen should not be shown if plymouth is deactivated. (In reply to Alexander Kläser from comment #16) > [...] > TODO: > * System setup boot OK. (In reply to Alexander Kläser from comment #11) > Created attachment 7354 [details] > Screenshot after pressing ESC during boot > > When pressing ESC during the bootsplash, the welcome screen is not shown. OK, I like this solution, a message is written in this case to press any key to open a text console. REOPEN → just the UCS logo box should be larger, otherwise it is really nice like this :) .
BTW, plymout.yaml needs an updated version number. AFAIS, we also need to publish an updated version of univention-system-setup, i.e., its YAML file is missing.
(In reply to Alexander Kläser from comment #20) > BTW, plymout.yaml needs an updated version number. AFAIS, we also need to > publish an updated version of univention-system-setup, i.e., its YAML file > is missing. updated plymout.yaml and univention-bootsplash.yaml (no changes in univention-system-setup) fixed logo size in ucs bootsplash theme
@QA: See Bug #40436, the issues mentioned for the old welcome screen should not be present in this new version.
The is_running() function in univention-welcome-screen.init looks like if it would detect any process without checking if the PID is really a welcome-screen instance. univention-welcome-screen stop would therefore kill any process if the process id from the PID file exists. root@master40:~# sleep 1000 & [1] 15998 root@master40:~# echo $! > /var/run/univention-welcome-screen.pid root@master40:~# invoke-rc.d univention-welcome-screen stop Stopping univention welcome screen: univention-welcome-screen. [1]+ Getötet sleep 1000 I think it would be good to check this with something like pgrep -nf …. There are also two scripts which are writing the pidfile (which might be okay): # grep '> /var/run/univention-welcome-screen.pid' /etc/init.d/univention-welcome-screen /usr/bin/univention-welcome-screen /etc/init.d/univention-welcome-screen: echo $! > /var/run/univention-welcome-screen.pid /usr/bin/univention-welcome-screen:echo $! > /var/run/univention-welcome-screen.pid
(In reply to Florian Best from comment #23) > The is_running() function in univention-welcome-screen.init looks like if it > would detect any process without checking if the PID is really a > welcome-screen instance. univention-welcome-screen stop would therefore kill > ... OK, done
(In reply to Felix Botner from comment #21) > (In reply to Alexander Kläser from comment #20) > > BTW, plymout.yaml needs an updated version number. AFAIS, we also need to > > publish an updated version of univention-system-setup, i.e., its YAML file > > is missing. > > updated plymout.yaml and univention-bootsplash.yaml (no changes in > univention-system-setup) OK, YAML files look fine, package versions are good. > fixed logo size in ucs bootsplash theme OK, the UCS logo looks great now :) . (In reply to Erik Damrose from comment #22) > @QA: See Bug #40436, the issues mentioned for the old welcome screen should > not be present in this new version. @Erik: Thanks for the hint :) . OK, I installed KDE and tested the behavior. Everything looks fine, /etc/init.d/plymouth makes explicit checks to see whether plymouth can be quit or whether the welcome screen will be shown. In case of a display-manager being present on the system, plymouth is quit and thus the welcome screen is not shown. (In reply to Felix Botner from comment #24) > (In reply to Florian Best from comment #23) > > The is_running() function in univention-welcome-screen.init looks like if it > > would detect any process without checking if the PID is really a > > welcome-screen instance. univention-welcome-screen stop would therefore kill > > ... > OK, done OK, The logic there looks fine, I cannot start the welcome screen a second time. AFAIS, everything is fine with this bug → VERIFIED
*** Bug 40436 has been marked as a duplicate of this bug. ***
<http://errata.software-univention.de/ucs/4.1/61.html> <http://errata.software-univention.de/ucs/4.1/63.html>
